Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | OSMANUV |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | OSM-IR-200 |
| दस्तावेज: | 5 Meters IR Drying Machine.pdf |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | लकड़ी का पैकेज |
| प्रसव के समय: | दस दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | वार्ता |
|
विस्तार जानकारी |
|||
| सुरक्षा विशेषताएं: | ज़रूरत से ज़्यादा गरम संरक्षण | प्रकार: | सुखाने की मशीन |
|---|---|---|---|
| कन्वेयर बेल्ट: | टेफ्लॉन जाल बेल्ट | वोल्टेज: | 220 वोल्ट |
| शक्ति: | 2000W | कार्य: | प्लास्टिक कप त्वरित ड्रायर |
| टाइमर सेटिंग: | 1-60 मिनट | वारंटी: | 1 वर्ष |
| ताप पद्धति: | अवरक्त | रंग: | कंप्यूटर सफ़ेद |
| प्रभावी सूखी चौड़ाई: | 200 मिमी | प्रकाश: | अवरक्त आईआर ट्यूब |
| स्थिति: | नया | ||
उत्पाद विवरण
Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Product Description

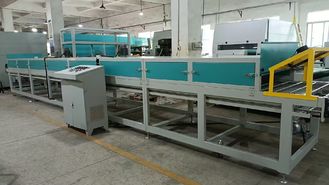

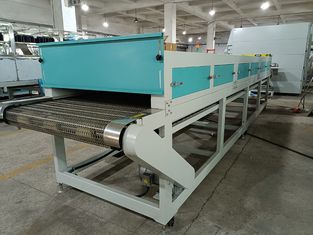

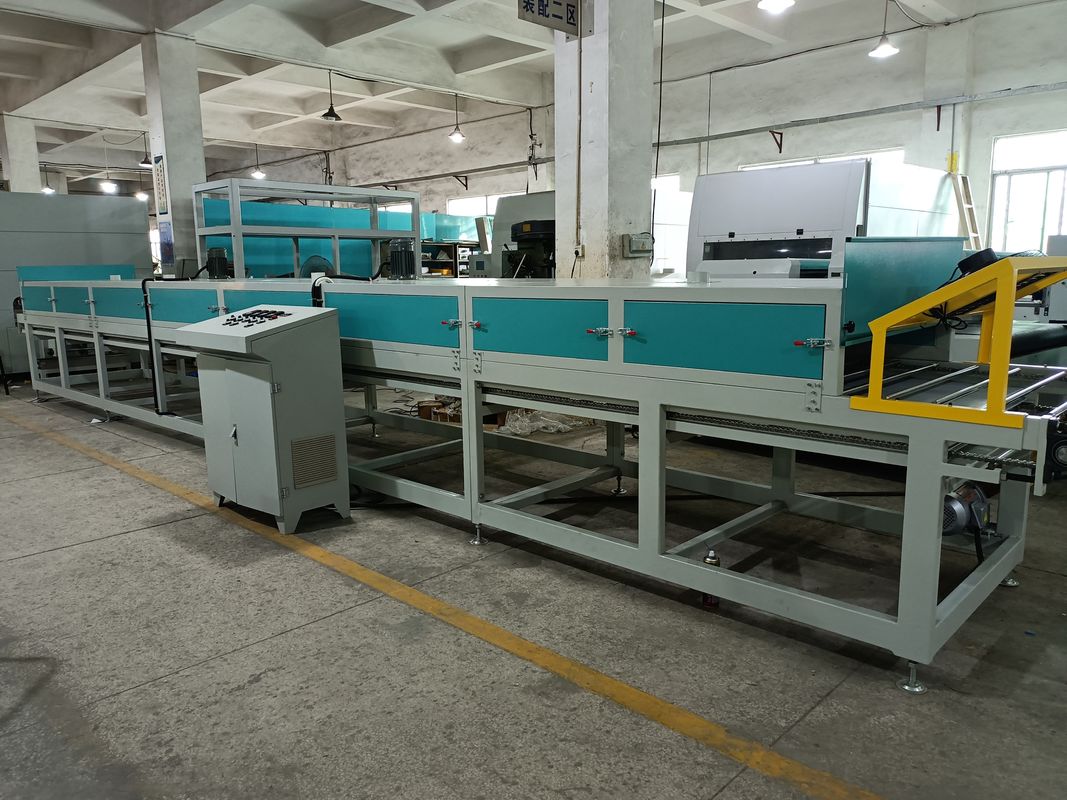

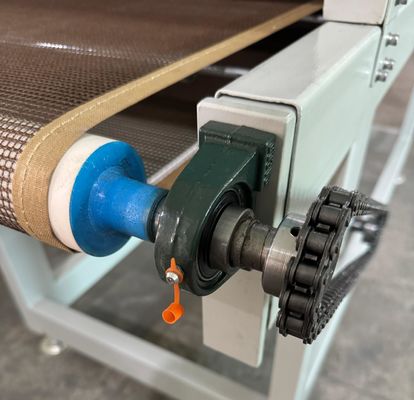

The 5 Meters IR Drying Machine (Model: OSM-IR-200) is a high-efficiency infrared drying solution designed for continuous industrial production. With a 5-meter drying tunnel and 750W extended shaft motor, it ensures uniform temperature distribution and fast curing for coatings, inks, or adhesives. The Kevlar conveyor belt (imported from the USA) and Taiwan Delta frequency converter enable smooth speed adjustment (1-5 m/min), ideal for high-throughput factories.
Technical Parameters
| Parameter | Details |
|---|---|
| Dimensions | 5000mm (L) × 1000mm (W) × 1280mm (H) |

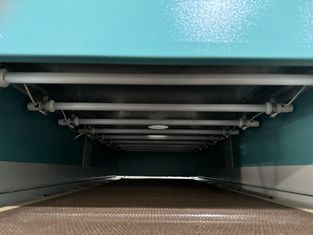

| Heating Source | US-made infrared quartz lamps, SUS 304 stainless steel inner wall |
| Temperature | Room temperature to 100°C (adjustable via BKC controller) |
| Belt Speed | 1-5 m/min (Delta frequency converter) |
| Power | 750W motor + Taiwan TWT gear reducer |
| Safety | Overload protection, emergency stop, CE-compliant electrical components |
Application
✔ Printing Industry: Drying UV inks on packaging materials.
✔ Electronics: Curing adhesives on PCB boards.
✔ Textiles: Heat-setting for synthetic fabrics.
Customization
-
Adjustable belt width (standard: 200mm).
-
Optional additional heating zones for higher temperatures.
Key Features
✅ Energy-saving: Infrared heating reduces power consumption by 30% vs. traditional ovens.

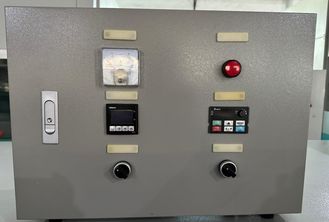

✅ Precision Control: Delta inverter ensures stable speed and temperature.
Support and Services
-
24/7 technical support via 400-666-2388.
-
On-site installation available in China.
Packing and Shipping
-
Wooden crate packaging (IP65 standard).
-
FOB Dongguan, lead time: 15 days.
FAQ
Q: Can it handle flammable materials?
A: Yes, with optional nitrogen atmosphere customization.
