Benchtop Spin Coater for Pulp Molding R&D – Precision Coating & Data Acquisition for Lab Samples

Benchtop Spin Coater for Pulp Molding R&D – Precision Coating & Data Acquisition for Lab Samples

Target Keywords: benchtop spin coater, pulp molding R&D, precision coating machine, data acquisition spin coater, customizable sample fixtures

Composition of Production Line

This precision‑engineered benchtop system features a modular composition:

• Rigid Benchtop Chassis with Vibration Damping — Minimizes external disturbances for uniform coating

• High‑Torque Brushless Servo Motor — Provides stable, precise rotation across full speed range

• Customizable Sample Chuck / Fixture — Vacuum, mechanical, or custom 3D‑printed options

• Integrated Digital Spin Controller with Programmable Logic — Up to 20 programmable recipes

• Safety Enclosure with Transparent Door — Allows visual monitoring during operation

• Optional Dispense System — Syringe pump or manual dispenser for coating application

• Data Logging Interface — USB / Ethernet for process data export

• Optional In‑situ Thickness Monitoring — Via reflectance measurement

The system is designed for bench‑top installation and can be integrated into a laboratory workflow with optional custom mold holders and post‑coating drying stations.-12

Product Description

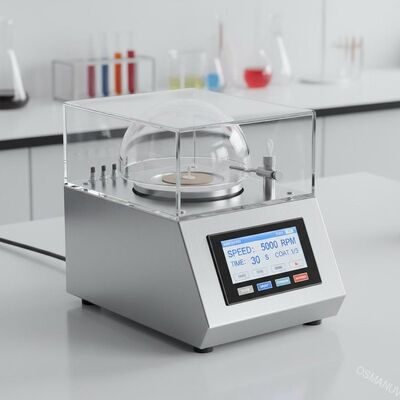

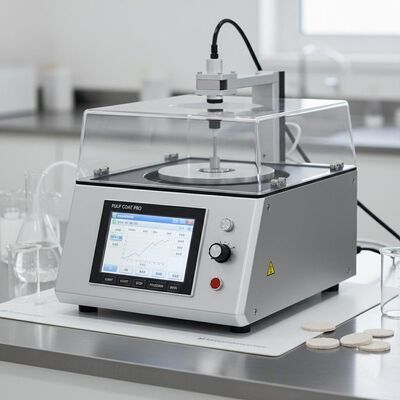

This Benchtop Spin Coater is a precision‑engineered, single‑station R&D system designed for applying uniform functional or decorative coatings onto experimental pulp molded substrates. It enables researchers to accurately explore coating parameters (speed, time, acceleration) for developing new pulp‑based products. The system offers highly customizable programming and fixture options to accommodate various small‑batch, irregular 3D shapes typical in pulp molding innovation.-12

Unlike traditional spray or dip coating methods, spin coating provides exceptional uniformity and material efficiency. The coating material is dispensed onto the internal surface of the pulp molded product, and high‑speed rotation spreads it into a thin, even layer. The result is a smooth, pinhole‑free barrier with precise thickness control. The system is particularly well‑suited for developing water‑resistant, oil‑resistant, heat‑resistant, and antimicrobial coatings for eco‑friendly food packaging.

The integrated data acquisition capability records all process parameters for each run, enabling rigorous R&D documentation, process optimization, and regulatory compliance.

Technical Parameters

Application

• Developing moisture‑resistant, oil‑resistant, heat‑resistant, or decorative coatings for pulp molded prototypes

• Applying barrier layers or functional coatings (e.g., antimicrobial, conductive) in R&D settings

• Optimizing coating formulations (lacquer, dispersion, PLA, PFAS‑free barriers) and process parameters for pulp substrates

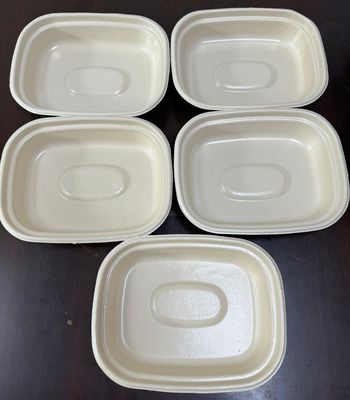

• Small‑batch production of high‑value, coated experimental products

• Quality assurance and process validation for new pulp molding packaging designs

• Academic research and university teaching laboratories

Customization

This system is inherently customizable for experimental flexibility. Key options include:

• Custom sample fixtures — Designed to hold specific 3D pulp shapes (plates, trays, bowls, cups, clamshells); available in vacuum, mechanical, or custom 3D‑printed formats

• Extended speed ranges — Up to 15,000 RPM for specialized coatings

• Integration with specific fluid dispensing systems — Peristaltic pumps, precision syringe pumps, or automated pipettes

• Specialized software for data export — CSV, PDF, or custom format for traceability

• Material compatibility upgrades — Corrosion‑resistant parts for specific coating chemistries

• Heating cover option — In‑situ drying during and after spin cycles

• Vacuum chuck customization — Multiple chuck sizes and shapes to match product geometry

• Cleanroom compatibility — ISO 5 / Class 100 configuration available

• Multi‑language HMI — English, Spanish, Japanese, Chinese, etc.

Feature

• Precision control — Exceptional control over spin speed, acceleration, and time for reproducible results

• R&D focused — Designed for parameter exploration and data logging, not just coating

• Compact & benchtop — Fits easily into any laboratory environment, footprint ~0.2 m²

• Multi‑step programmable recipes — Up to 10 steps per recipe for complex coating sequences

• Vacuum holding system — Securely holds irregular 3D pulp molded shapes without damage

• User‑friendly touchscreen — Intuitive interface with recipe management and recall

• Data acquisition — Full process logging for traceability and regulatory compliance

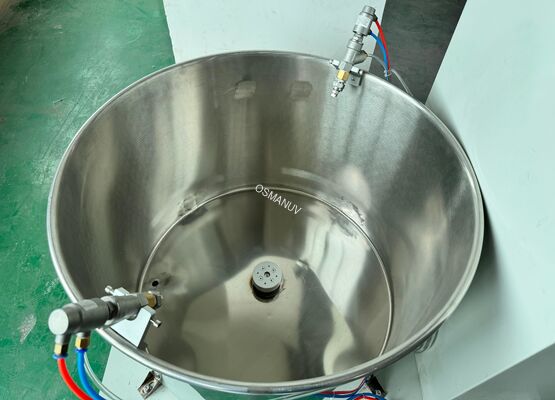

• Easy cleaning — Removable spin bowl, solvent‑resistant components

• Vibration damping — Minimizes external disturbances for uniform coating

• Safety interlock — Transparent cover with automatic shutdown when opened

Support and Services

• Lifetime free technical support — Email, phone, and video call assistance

• Remote commissioning — Engineer guidance via TeamViewer or video call

• Free sample testing — Send your pulp molded product, we provide coating test report with parameter recommendations

• 2‑year warranty — On motor, controller, and all electronic components

• Spare parts availability — Global shipping within 48 hours for critical items

• Operator training — On‑site or remote training included

• Annual calibration service — With certified calibration certificate and traceable standards

Packing and Shipping

• Packed in export‑grade plywood case with anti‑rust film, desiccant bags, and shock‑absorbing foam

• Includes: English manual, CE certificate, calibration report, tool kit, spare parts kit

• Shipping: FOB / CIF by sea; express air freight (DHL/UPS/FedEx) available for urgent orders

• Lead time: 15 days for standard; 25–35 days for customized fixtures or extended speed ranges

• Minimum order: 1 set

FAQ

Q1: What makes this benchtop coater different from other spin coaters?
A1: This system is specifically designed for pulp molding R&D, with customizable fixtures for irregular 3D shapes, extended speed ranges for low‑viscosity coatings, and integrated data acquisition for process traceability — features not found in general‑purpose spin coaters.

Q2: Can I use the same machine for both R&D and small‑batch production?
A2: Yes. While optimized for R&D, the system is robust enough for small‑batch production (up to 100‑200 pieces per day depending on cycle time). For higher volumes, we offer dual‑station production models.

Q3: How do I clean the machine between different coating materials?
A3: The spin bowl is removable for easy cleaning. The vacuum chuck can be wiped or soaked in solvent. All wetted parts are made of corrosion‑resistant materials (SUS304 or PTFE). An automatic cleaning cycle can be customized.

Q4: Does the machine require compressed air?
A4: No. The vacuum chuck uses an integrated oil‑free vacuum pump (included). The system only requires a standard electrical outlet.

Q5: Can I coat the outside surface of pulp molded products as well?
A5: This model is designed for internal surface coating. For external coating, we can customize the fixture to hold the product by its interior, allowing the exterior to be coated. Alternatively, please see Product 3 for a dual‑chamber design that can handle both internal and external coating.

Q6: What is the minimum and maximum product size the machine can handle?
A6: Minimum product diameter ~50mm; maximum depends on chuck size. Standard vacuum chuck handles up to 150mm diameter. For larger products, we offer customizable chucks up to 300mm diameter.

Product 3: All‑in‑One Single‑Station Spin Coating & Drying System for Pulp Molded Barrier Coating

Target Keywords: spin coating drying system, pulp molded barrier coating, single‑station spin coater with heating, customizable coating recipes, lab‑to‑production spin coater

Composition of Production Line

This integrated all‑in‑one system combines spin coating and drying in a single compact station:

• Manual Loading Station — Ergonomically positioned for easy placement of pulp molded products

• Integrated Spin Coating Chamber — Programmable spin chuck with customizable fixture

• Integrated Drying Module — IR lamp or hot air nozzle for immediate post‑spin drying (temperature adjustable up to 150°C)

• Precision Coating Dispense System — Syringe pump or peristaltic pump with volume control

• Touchscreen Control Console — PLC‑based control with full recipe management

• Data Logging Interface — USB / Ethernet / RS485 for process data export

• Exhaust Port — For solvent vapor removal (connectable to lab exhaust system)

The system is designed for bench‑top or floor‑standing installation and can be integrated into a laboratory or pilot production workflow. The compact footprint makes it ideal for space‑constrained R&D facilities.

Product Description

This All‑in‑One Single‑Station Spin Coating & Drying System is an integrated solution for applying and curing barrier coatings on pulp molded food containers and packaging. The system combines precision spin coating with in‑situ drying, eliminating the need for a separate drying oven and reducing process time.

The machine is specifically designed for developing and testing water‑resistant, oil‑resistant, heat‑resistant, and PFAS‑free barrier coatings for eco‑friendly pulp molded products. The integrated drying module (IR lamp or hot air) allows immediate curing of water‑based or solvent‑based coatings, enabling rapid iteration of coating formulations and process parameters.

The system features a PLC‑based control system with a user‑friendly touchscreen interface, allowing operators to store and recall up to 100 coating recipes. Each recipe can include multiple spin steps (speed, acceleration, duration) and drying parameters (temperature, time). The machine holds the pulp molded product securely on a customizable vacuum chuck or mechanical fixture, ensuring stable rotation even for irregular 3D shapes.

Technical Parameters

Application

• Developing and testing water‑resistant, oil‑resistant, and heat‑resistant barrier coatings for pulp molded food containers

• Rapid prototyping of coated pulp molded products (plates, bowls, trays, cups, clamshells)

• Optimizing coating formulations (PLA, PBAT, PFAS‑free dispersions, water‑based acrylics) and process parameters

• Quality assurance testing for barrier coating performance

• Small‑batch production of coated pulp molded products for market trials

• Research into biodegradable and compostable barrier coatings for sustainable packaging

Customization

This system offers extensive customization options:

• Custom sample fixtures — Vacuum chuck, mechanical clamping, or custom 3D‑printed holders for specific product geometries

• Extended speed range — Up to 12,000 RPM for low‑viscosity or ultra‑thin coatings

• Multiple drying options — IR lamp, hot air, or combination; temperature range customizable up to 200°C

• Automated dispense system — Peristaltic pump, precision syringe pump, or spray nozzle for larger products

• Chamber size customization — Larger chambers for oversized products (up to 400mm diameter)

• Cleanroom compatibility — ISO 5 / Class 100 configuration with HEPA filtration

• Multi‑language HMI — English, Spanish, Japanese, Chinese, German, French

• Data connectivity — Custom data format, MES integration, remote monitoring

• Exhaust system — Integrated activated carbon filter for solvent vapor capture

• Material compatibility — Corrosion‑resistant upgrades for aggressive coating chemistries

Feature

• All‑in‑one integration — Spin coating and drying in a single station, no separate oven needed

• Precision control — Exceptional control over spin speed, acceleration, and drying parameters

• PLC‑based automation — Robust industrial control with full recipe management (100 recipes)

• In‑situ drying — IR lamp or hot air curing immediately after spin cycle

• Vacuum holding system — Securely holds irregular 3D pulp molded shapes without damage

• User‑friendly touchscreen — Intuitive interface for programming and monitoring

• Data logging — Full process traceability via USB/Ethernet/RS485

• Easy cleaning — Removable spin bowl, solvent‑resistant components

• Over‑temperature protection — Safety cutoff for drying module

• Energy efficient — Low power consumption, standby mode available

• Compact footprint — Fits easily into laboratory or pilot production environments

Support and Services

• Lifetime free technical support — Email, phone, and video call assistance

• Remote commissioning — Engineer guidance via TeamViewer or video call

• Free sample testing — Send your pulp molded product and coating material, we provide test report with optimized parameters

• 3‑year warranty — On PLC, motor, drying module, and all electronic components

• Spare parts availability — Global shipping within 48 hours for critical items

• On‑site training — Available for enterprise customers (additional fee)

• Annual calibration and maintenance service — With certified calibration certificate

• Process optimization consulting — Our coating engineers can help you develop optimal parameters for your specific product and coating

Packing and Shipping

• Packed in heavy‑duty export wooden case with VCI anti‑rust film, desiccant bags, and custom foam inserts

• Includes: English manual, CE certificate, calibration report, tool kit, spare parts kit

• Shipping: FOB / CIF by sea (20ft or 40ft container); express air freight available for urgent orders

• Lead time: 20 days for standard; 30–45 days for customized fixtures, extended speed ranges, or larger chambers

• Minimum order: 1 set

FAQ

Q1: Why do I need an integrated drying module?
A1: Many barrier coatings (especially water‑based dispersions) require drying to form a continuous film. The integrated drying module allows immediate curing, reducing process time and enabling rapid iteration of coating formulations. It also prevents contamination that can occur when moving wet samples to a separate oven.

Q2: Can the drying module damage the pulp molded product?
A2: No. The drying temperature is adjustable from ambient to 150°C, and pulp molded products are typically heat‑resistant up to 180–200°C. For heat‑sensitive coatings or substrates, we recommend lower temperatures (40–60°C) with longer drying times. Over‑temperature protection is included as a safety feature.

Q3: What is the maximum product size this machine can handle?
A3: Standard chuck size accommodates up to 200mm diameter. With customization, we can accommodate products up to 400mm diameter and 200mm depth. Please contact us with your product dimensions for a custom solution.

Q4: Can this machine be used for production, or only R&D?
A4: While optimized for R&D and pilot production, the robust PLC‑based control and stainless steel construction make it suitable for small‑batch production (50–500 pieces per day depending on cycle time). For high‑volume production, we recommend our dual‑station or multi‑station spin coating lines.

Q5: How do I ensure the coating is food‑safe for food contact applications?
A5: The machine is constructed from food‑grade SUS304 stainless steel in all product contact areas. For specific food safety certifications (FDA, EU 10/2011), we can provide material certificates and assist with validation testing. The choice of coating material is the customer‘s responsibility; we recommend using FDA‑approved or EU‑compliant barrier coatings for food contact applications.

Q6: Does the machine require a dedicated exhaust system?
A6: For water‑based coatings, exhaust is optional. For solvent‑based coatings, we strongly recommend connecting the exhaust port to a laboratory exhaust system or using our optional activated carbon filter module (customizable). The machine does not generate hazardous fumes when used with approved coatings, but proper ventilation is always recommended.

Q7: What is the typical cycle time per product?
A7: Typical cycle time is 30–90 seconds, depending on spin parameters and drying time. Loading/unloading takes approximately 5–10 seconds. For example: dispense (5s) + spin (30s) + drying (30s) + loading/unloading (10s) = approximately 75 seconds per product.

Q8: Can I see a demo before purchasing?
A8: Yes. We offer live video demonstrations and can perform sample coating tests on your products at our facility. Please contact us to arrange a demo or to send your samples for testing.

All three models are fully customizable in terms of spin speed range, chuck/fixture design, chamber dimensions, drying configuration, and control features. For a detailed quotation and engineering consultation, please provide your product dimensions, target coating material, desired production volume, and any specific regulatory requirements.
