Two Lamp UV Curing Machine for Wooden Furniture Surface Drying High-Intensity Instant Curing System
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | OSMANUV |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | OSM-UV-1320 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | वुड पैकेजिंग |
| प्रसव के समय: | 35 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | बातचीत |
|
विस्तार जानकारी |
|||
| वोल्टेज: | 380V/50 हर्ट्ज | स्थिति: | नया |
|---|---|---|---|
| आयाम (l*w*h): | अनुकूलित आकार, 1900*2230*1410मिमी,1000*2575*1750मिमी,1200*620*550मिमी(एल*डब्ल्यू*एच),1030*1000*620मि | स्वत: ग्रेड: | स्वचालित, अर्ध-स्वचालित, मैनुअल, अन्य |
| गारंटी: | 1 वर्ष | शक्ति: | 3KW, 16KW, 65.3kW, 4.2kW, 0.75kW/220V/50Hz |
| कोटिंग गति: | समायोज्य, 1-15 मीटर/मिनट | कोटिंग चौड़ाई: | 1320 मिमी |
उत्पाद विवरण

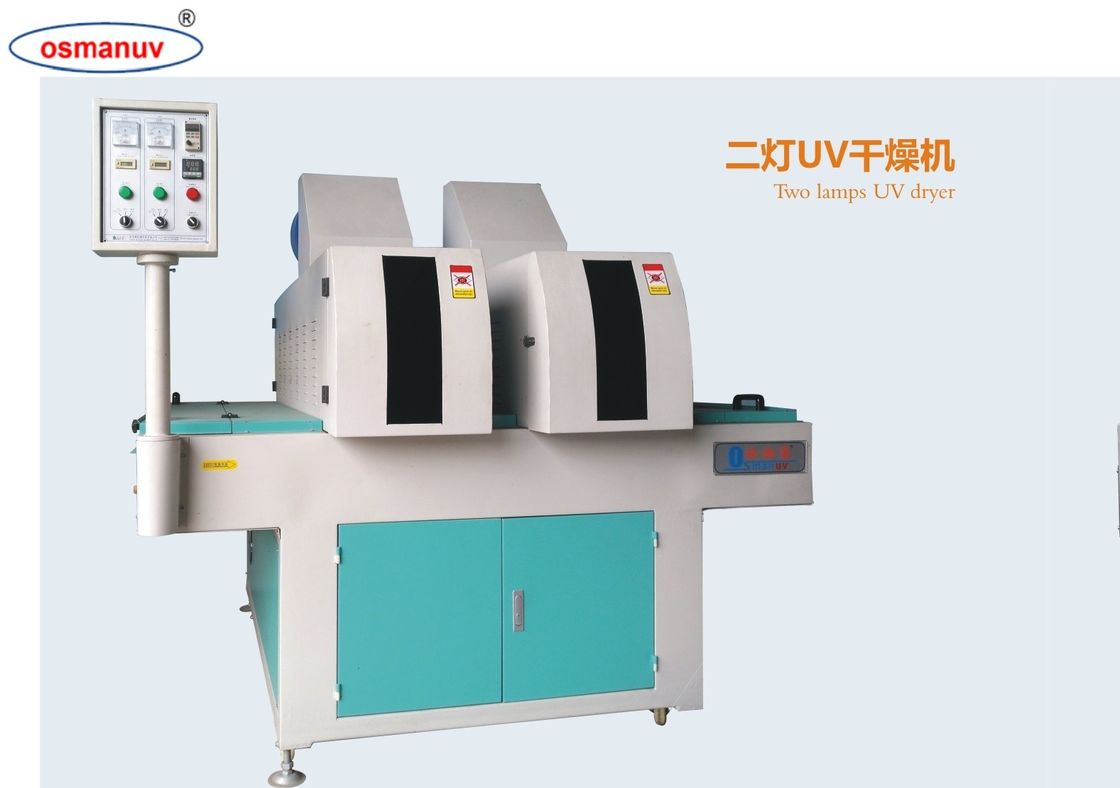

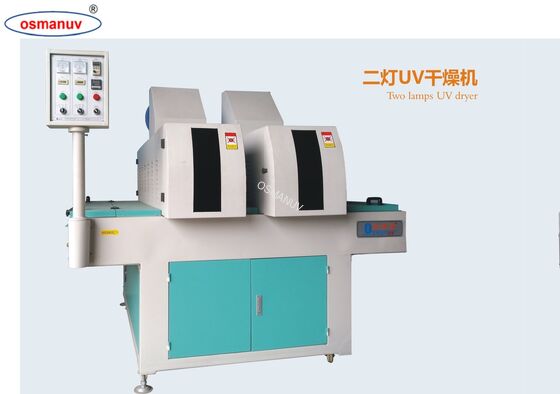

Two Lamp UV Curing Machine for Wooden Furniture Surface Drying High-Intensity Instant Curing System
Product Description
This industrial-grade two lamp UV curing machine delivers high-intensity ultraviolet light for instant drying and curing of coatings on wooden surfaces. Featuring two powerful UV lamps with optimized reflector technology, it ensures complete curing in seconds while significantly improving production efficiency and surface quality.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-UV-1320 |
| UV Lamps | 2 x 10 kW |
| Effective Width | 1320 mm (Customizable) |
| Conveyor Speed | 1-15 m/min |
| Peak Intensity | 1200 mW/cm² |
| Power Supply | 380V/3Phase/50Hz |
| Lamp Life | 2000 hours |
Application
Instant curing of UV coatings on wooden furniture, flooring, cabinet doors, and decorative wood panels in furniture manufacturing and woodworking industries.
Customization
-
Customizable curing width from 800mm to 1800mm
-
Customizable lamp power and intensity
-
Customizable conveyor type integration
Feature
-
Two lamp high-intensity output
-
Instant curing capability
-
Energy efficient operation
-
Easy lamp replacement system
Support and Services
-
Professional installation guidance
-
Comprehensive operator training
-
18-month warranty period
-
Remote diagnostic support
Packing and Shipping
-
Reinforced wooden crate packaging
-
Shock-proof internal cushioning
-
Weather-resistant external covering
FAQ
Q: What is the typical curing time for wood coatings?
A: Most wood coatings cure completely within 2-5 seconds at optimal conveyor speeds.
