HIGH-SPEED ROLL-TO-ROLL LAMINATING PRODUCTION LINE | CUSTOMIZABLE WIDTH & REWIND TENSION

उत्पाद विवरण:

उत्पत्ति के प्लेस: चीन
ब्रांड नाम: OSMANUV
प्रमाणन: ISO9001
मॉडल संख्या: विनिर्देश

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: वुड पैकेजिंग
प्रसव के समय: 30 दिन
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: बातचीत
सबसे अच्छी कीमत संपर्क करें

विस्तार जानकारी
स्वचालित ग्रेड: अर्द्ध स्वचालित दबाव: 3 ~ 8 एमपीए
प्रेरित प्रकार: इलेक्ट्रिक ओवरलैप प्रेसिजन: ≤±2 मिमी
अधिकतम गति: 0-30 मी/मिनट प्रकार: रोल लैमिनेटर
कागज का वजन: 127-450 ग्राम
प्रमुखता देना:

high-speed roll-to-roll laminating machine

,

customizable width film laminator

,

rewind tension laminating production line

उत्पाद विवरण

Product Description

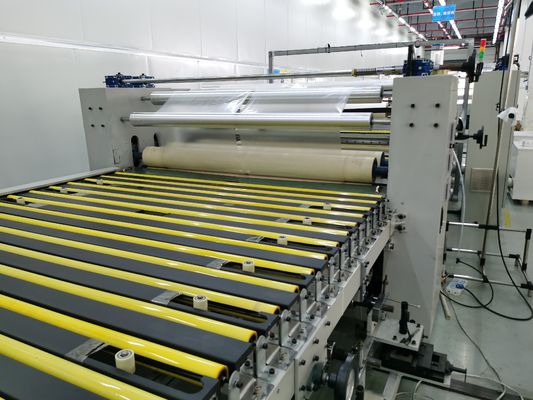

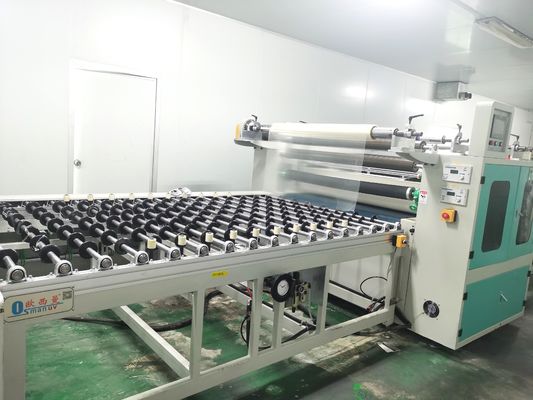

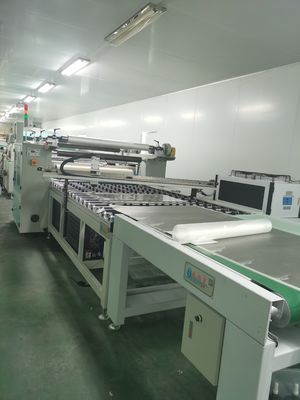

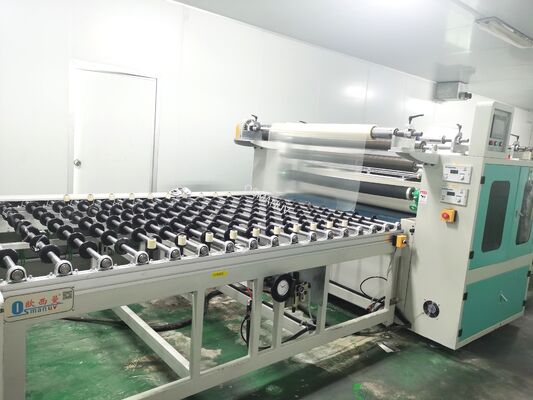

This surface laminating machine applies protective or decorative film onto flat substrates such as paper, cardboard, plastic sheet, aluminum composite panel, and photo paper. It supports both hot and cold lamination, preventing scratches, moisture, UV damage, and fingerprints. The machine is highly customizable in roller width, film type, heating profile, and tension control system. Ideal for printing houses, packaging factories, and signage manufacturers seeking bubble-free, high-transparency lamination.

Technical Parameters(表格形式)



Parameter Standard Specification Customizable Options
Max laminating width 650 mm Yes – 350 mm to 1600 mm
Substrate thickness range 0.1–5 mm Yes – up to 15 mm (adjustable roller gap)
Lamination speed 0–8 m/min Yes – 0–15 m/min (servo motor option)
Roller diameter 80 mm (upper) / 80 mm (lower) Yes – 100–150 mm for thicker film
Roller material Silicone (standard) Yes – EPDM / NBR / steel (heated)
Heating method Infrared + quartz tube Yes – oil heating / ceramic heating
Max heating temperature 120°C Yes – 150°C or 200°C
Film types supported BOPP, PVC, PET, thermal lamination film Yes – biodegradable film / anti-UV film
Power supply 220V / 50Hz / 1-phase Yes – 110V / 60Hz or 380V 3-phase
Machine dimensions (L×W×H) 1200×900×1100 mm Yes – compact or extended layout

Application

  • Printing industry: book covers, posters, business cards, photo books

  • Packaging: folding cartons, corrugated boxes, labels

  • Construction materials: aluminum composite panels, PVC ceiling boards

  • Advertising: roll-up banners, billboards, decals

  • Customizable for curved or rigid substrates (with manual feed table attachment)

Customization(重点可定制模块)

This laminating machine can be tailored to your exact production needs:

  • Roller hardness – customizable Shore A value (30°–90°)

  • Safety guard – customizable with emergency stop rope or light curtain

  • Automatic film cutter – customizable for roll-to-sheet lamination

  • Dust removal system – customizable with ionizing bar or vacuum

  • Color & branding – customizable paint (any RAL) + OEM logo

  • Control system – customizable PLC brand ( Delta / Wecon)

Feature

  • Bubble-free lamination – pressure-balanced roller design

  • Digital temperature display – ±1°C accuracy

  • Adjustable roller pressure – handwheel + locking mechanism

  • Reverse function – for removing misaligned materials

  • Foot pedal control – hands-free operation (optional, customizable)

  • Energy-saving mode – heating standby when not laminating

  • Quick roller change – detachable side frame design

Support and Services

  • Pre-sale testing – laminate your sample for free (customizable number of samples)

  • Installation video – included (customizable with voiceover in your language)

  • Remote support – WhatsApp / TeamViewer (customizable response time SLA)

  • Spare parts availability – 8+ years (customizable parts kit upon order)

  • On-site training – available at extra cost (customizable duration: 1–5 days)

Packing and Shipping

  • Packing – Stretch film + foam padding + export-grade plywood case (customizable with shockwatch indicator)

  • Shipping – FOB / CIF / DDP (customizable port: Shanghai / Shenzhen / Ningbo / Qingdao)

  • Lead time –

    • Standard: 15–20 working days

    • Customizable express: 7–10 working days (additional charge)

  • Documents – Commercial invoice, packing list, CE declaration (customizable certificate: UL / CSA upon request)

FAQ

Q1: Can this machine laminate double-sided in one pass?
A: Not on standard model. However, we offer customizable dual-unwinding stations for simultaneous top and bottom lamination.

Q2: What if my material is thicker than 5 mm?
A: Roller gap is customizable up to 15 mm. Please specify your max thickness before ordering.

Q3: Do you support cold lamination only?
A: Yes – heating system can be disabled or completely removed. Customizable no-heat version available at lower cost.
