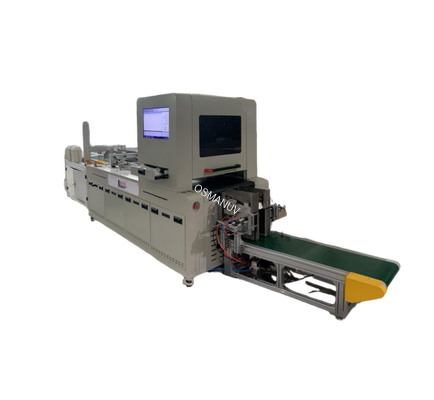

High-speed single-pass digital printer with 150 m/min printing speed customizable up to 2,500 mm width and CMYK + white + varnish configurations
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | OSMANUV |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | विनिर्देश |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | वुड पैकेजिंग |
| प्रसव के समय: | 30-45 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | बातचीत |
|
विस्तार जानकारी |
|||
| रिवाइंडिंग स्पीड: | 0.1-10 मी / मिनट | गारंटी: | 1 वर्ष |
|---|---|---|---|
| सब्सट्रेट: | फाइबर सीमेंट बोर्ड | लैंप प्रकार: | मरकरी लैंप या एलईडी यूवी लैंप |
| पंजीकरण शुद्धता: | ± 0.15 मिमी | अधिकतम कागज आकार: | 700*1000 मिमी |
| दूध पिलाने की शक्ति: | 0.4/0.75kw | रोलर प्रकार: | इस्पात तार |
| प्रमुखता देना: | high-speed digital printer 150 m/min,customizable digital printer 2500 mm width,CMYK white varnish UV coating machine |
||
उत्पाद विवरण

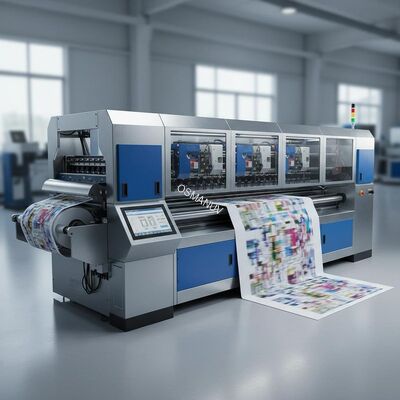

HIGH-SPEED SINGLE-PASS DIGITAL PRINTER – INDUSTRIAL ONE-PASS INKJET FOR LABELS & PACKAGING
Product Overview
This single-pass digital printer delivers true one-pass printing at production speeds up to 150 m/min. Unlike multi-pass scanners, it uses fixed print bars spanning the full web width. Print width, number of colors, ink type, and drying method are fully customizable. Ideal for high-volume label, flexible packaging, corrugated board, and industrial decoration applications. Supports CMYK, white, varnish, orange, green, and violet configurations.
Technical Specifications
| Parameter | Standard Value / Range | Customization Option |
|---|---|---|
| Printing technology | Piezoelectric single-pass | Customizable printhead brand (Ricoh/Kyocera/Xaar) |
| Print width | 210 mm / 330 mm / 420 mm | Customizable up to 2,500 mm |
| Print speed | 50 - 150 m/min (standard) | Customizable up to 300 m/min |
| Print resolution | 600 × 600 dpi up to 1200 × 1200 dpi | Customizable |
| Number of colors | 4 (CMYK) standard | Customizable: 4 -12 colors |
| Ink types | UV, water-based, solvent | Customizable for edible/invisible/conductive inks |
| Substrate thickness | 0.1 - 12 mm (flexible) / up to 50 mm (rigid) | Customizable vacuum table height |
| UV curing power | 8 - 24 kW (per lamp) | Customizable wavelength & cooling type |
| Power supply | AC 380V / 50Hz (3-phase) | Customizable to 480V / 60Hz |
Applications
- Flexible packaging & stand-up pouches
- Corrugated boxes & carton printing
- Label & shrink sleeve production
- Industrial decoration (wood, glass, metal panels)
- Textile roll-to-roll printing
- Customizable for direct-to-object printing (bottles, tubes)
Customization Options
We offer full production line customization including:
- Print width from 210 mm to 2.5 meters - fully customizable
- Color channels: 4 to 12 (CMYK + spot + varnish + white)
- Printhead bridging & stitching optimization for seamless joins
- Ink recirculation system for high-pigment inks (customizable)
- Data handling interface - customizable to existing MES/ERP
- Substrate handling - roll-to-roll, sheet-fed, or hybrid (customizable)
Key Features
- True one-pass architecture - no scanning carriage, no speed loss
- Grey-level printhead support for smooth gradients & fine text
- Automatic nozzle compensation & jetting calibration
- Low migration UV ink option for food packaging compliance
- Real-time print bar temperature control (±0.5°C)
- Customizable safety interlock & dust extraction ports
Support and Services
- Global remote support (VPN / team viewer - 24/7 available)
- On-site installation & operator training (5-10 days included)
- Process development - ink and substrate matching service
- Customizable spare parts kit (based on your runtime)
- 24-month warranty on print bars & curing lamps
Packing and Shipping
- Anti-static & shockproof wooden case
- Internal climate monitoring logger
- Shipping: FOB or CIF - customizable export packaging & documentation
- Lead time: 6 weeks for standard widths, customized lines 8 -12 weeks
Frequently Asked Questions
Q1: Can I print on thick rigid boards (e.g., 30 mm corrugated)?
A: Yes - customizable vacuum conveyor with adjustable platen gap.
Q2: How is maintenance on one‑pass heads?
A: Automated capping, wiping, and spitting cycles are included. Fully customizable cleaning frequency.
Q3: Can I add more colors later?
A: Yes - the system is modular; additional print bars are customizable as an upgrade kit.
