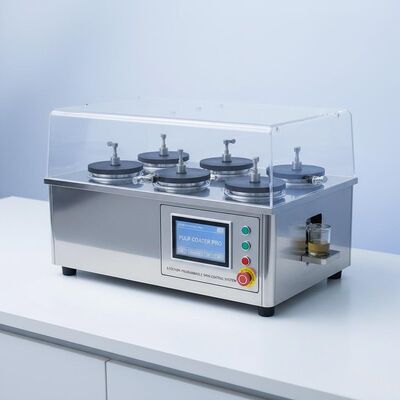

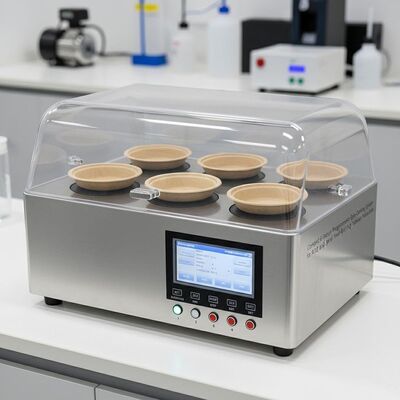

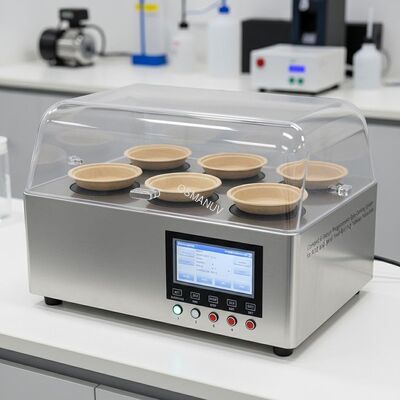

Compact 6-Station Programmable Spin Coating System for R&D and Small-Batch Pulp Tableware Production

Compact 6-Station Programmable Spin Coating System for R&D and Small-Batch Pulp Tableware Production

Composition of Production Line

This compact, modular system features:

• Manual/Semi-Auto Loading Station: Flexible product presentation for R&D and pilot projects

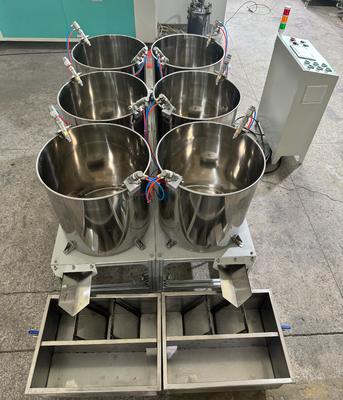

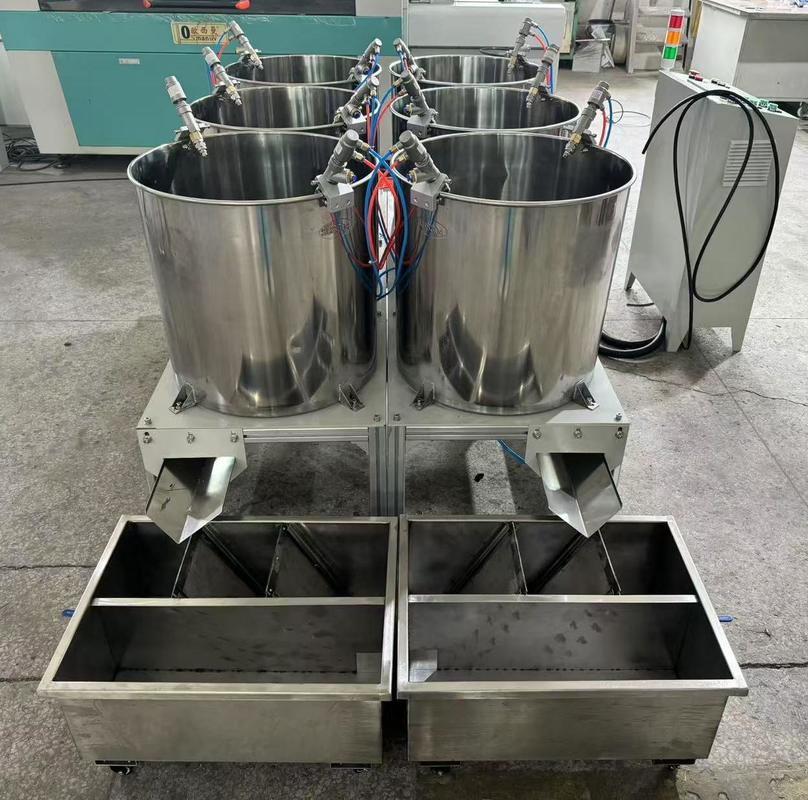

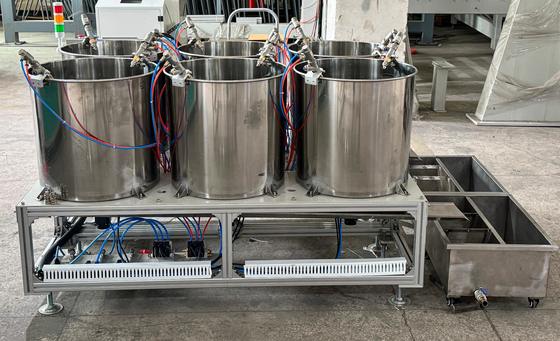

• 6-Station Programmable Spin Coating Chamber: The core unit with customizable spin profiles for each station

• 6-Axis Programmable Motion System: Allows complex coating path programming for varied product geometries

• Compact Rapid Drying Oven: Energy-efficient oven with adjustable temperature zones

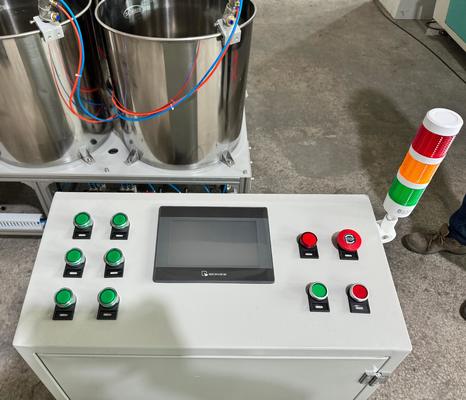

• Centralized Control Unit: PLC-based system with intuitive HMI and recipe memory for storing multiple custom coating programs-1

Product Description

This Compact 6-Station Programmable Spin Coating System is a versatile and space-saving solution perfect for R&D, pilot projects, and small to medium-batch production of coated molded pulp tableware. It allows for rapid prototyping and application of various functional coatings (waterproof, oil-proof, heat-resistant barriers) to diverse pulp molded samples with high precision. The machine enables manufacturers to test and perfect uniform, high-performance coatings with exceptional control and repeatability, serving as a vital bridge between lab-scale concept and full-scale production. Custom-engineered fixtures ensure secure product holding during the spin coating process for consistent 360-degree internal coverage-34.

Technical Parameters

Application

Suited for laboratories, startups, and manufacturers producing a wide variety of molded pulp tableware products requiring tailored coating solutions:

• Coating formulation R&D: Testing bio-based coatings, PFAS-free oil barriers, and waterproof agents on pulp molded substrates

• Process parameter optimization: Determining ideal spray volume, rotation speed, and drying conditions for full-scale production

• Small-batch production: Manufacturing limited runs of specially coated, high-value, or prototype tableware

• Quality control testing: Verifying coating performance and consistency before committing to large production orde

Customization

This system is highly customizable for R&D and small-batch production needs. Customization options include:

• Various spin head designs and fixture types (vacuum chuck, mechanical clamp, custom-machined nests)

• Software for complex coating recipes and test protocols

• Integration with different drying or curing technologies (IR, UV-LED, NIR, hot air)

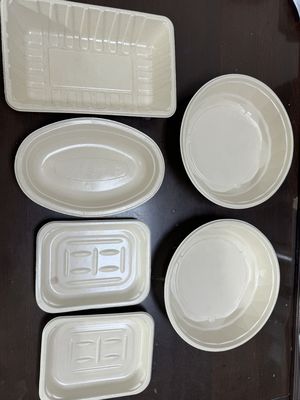

• Tailored product holders designed to hold your specific tableware shapes (bowls, plates, trays, cups)

• Modular layout adaptable to available lab or production space

• Data logging capability for process parameter recording and quality traceability-34

Features

• Flexibility: Easy-to-change programs and fixtures make it ideal for R&D and small batches of different products

• Compact Design: Saves valuable floor space in smaller production or lab areas

• User-Friendly: Simple interface allows for quick setup and operation with minimal training

• Precision Coating: Ensures consistent, thin, and uniform film on complex 3D geometries

• Rapid Drying Cycle: Integrated drying oven speeds up the R&D process

• Durable & Low Maintenance: Built with industrial-grade components for reliable performance-1

Support and Services

• Installation Manual & Video Support: Detailed documentation and online training resources

• Online Training: Remote training for operators and maintenance personnel

• Optional On-Site Commissioning: Professional installation and setup support available

• Application Development Support: Assistance with coating formulation integration and parameter optimization

• Technical Hotline: Responsive remote technical support

Packing and Shipping

• Packaging: Shipped as one main crate with several smaller boxes; standard export wooden case packaging ensures safety for all shipping methods-1

• Shipping: Worldwide shipping available with flexible logistics options

• Delivery Time: 30-45 days depending on customization requirements

FAQ

Q: Is this machine suitable for testing new coating formulas?
A: Absolutely. Its programmable nature and customizable parameters make it an ideal platform for R&D and coating formulation testing.

Q: How difficult is it to change the product setup?
A: Very simple. The mechanical fixtures are designed for quick release, and product profiles can be saved and recalled from the control system.

Q: Can this system be scaled up to full production later?
A: Yes. Process parameters optimized on this R&D system can be directly transferred to our high-output production lines for seamless scale-up.

Q: What types of coatings can be tested on this system?
A: The system is compatible with water-based dispersions, bio-based barriers (PLA, PHA), PFAS-free solutions, and various test formulations. Customization options are available for specific coating viscosities and curing requirements.
