High-Precision Single Station Spin Coater – Customizable Ramp & Speed Profile for R&D Labs

उत्पाद विवरण:

उत्पत्ति के प्लेस: चीन
ब्रांड नाम: OSMANUV
प्रमाणन: ISO9001
मॉडल संख्या: विनिर्देश

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: वुड पैकेजिंग
प्रसव के समय: 30-45 दिन
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: बातचीत
सबसे अच्छी कीमत संपर्क करें

विस्तार जानकारी
अद्भूत मरा: एडजस्टेबल सब्सट्रेट: फाइबर सीमेंट बोर्ड
कार्य -केंद्र: दो ताप स्रोत: बिजली की आटिंग
सामग्री अनुकूलता: विभिन्न लुगदी ढाले उत्पादों के साथ संगत सुखाने का समय: एडजस्टेबल
कोटिंग विधि: स्प्रे कोटिंग/रोलर कोटिंग मशीन वजन: लगभग 500-800 किग्रा
प्रमुखता देना:

single station spin coater

,

customizable ramp speed spin coater

,

R&D lab pulp coating machine

उत्पाद विवरण

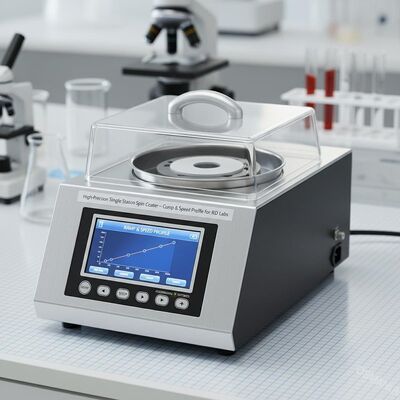

High-Precision Single Station Spin Coater – Customizable Ramp & Speed Profile for R&D Labs

Product Description

Our single station spin coater is designed for uniform thin film deposition of photoresist, polyimide, sol-gel, and nanoparticles. It features high speed stability (< ±1% fluctuation), low vibration, and a chemical-resistant bowl. The compact design is suitable for R&D labs, pilot lines, and small-batch production.
Customizable options include:chuck size, bowl material (PTFE/PP/stainless steel), motor type (brushless DC / servo), and exhaust port position.

Technical Parameters:(table format)



Parameter Standard Range Customizable Option
Substrate size 10 mm – 150 mm dia. Up to 200 mm square
Speed range 100 – 12,000 rpm 50 – 15,000 rpm
Acceleration 100 – 10,000 rpm/s Customizable ramp profiles
Speed stability ±0.5% ±0.1% (servo motor)
Program steps 10 programs, 20 steps each Unlimited steps customizable
Chuck type Vacuum chuck (aluminum) PTFE / ceramic / custom pattern
Bowl material Polypropylene (PP) PTFE / stainless steel 316L
Exhaust port Ø50 mm rear Left / right / dual ports
Motor type Brushless DC Servo motor customizable
Display 4.3" LCD 7" HMI touch screen
Power 220V/50Hz or 110V/60Hz Available for any voltage

Application

  • Semiconductor wafer coating (photoresist, ARC)

  • OLED and quantum dot thin films

  • Sol-gel and spin-on glass (SOG)

  • Biosensor and polymer film deposition

  • Perovskite solar cell fabrication

Also suitable for customizable high-viscosity or high-temperature processes.

Customization

We offer full customizable options:

  • Bowl inner diameter and drain groove design

  • Vacuum chuck shape for non-standard substrates (e.g., rectangular, broken wafers)

  • Automatic cover with interlock

  • Nitrogen blow-dry during spin

  • Multiple dispense nozzle brackets

  • Special coating programs (e.g., reverse spin, pulse spin)

Feature

  • High acceleration repeatability for uniform edge bead

  • Real-time speed curve display and data export (CSV)

  • Easy-swap chuck design without tools

  • Chemical-resistant and seamless stainless steel or PTFE bowl

  • Autofill rinse function for cleaning between runs

  • Customizable recipe library for multiple operators

Support and Services

  • Installation guide and calibration video included

  • Remote troubleshooting within 24 hours

  • 18 months warranty on motor and controller

  • On-site training (available for customizable packages)

  • Spare parts shipment from local warehouses (US/EU/Asia)

Packing and Shipping

  • Packing:Foam-lined wooden case with anti-static bag

  • Dimensions (carton):55×45×45 cm

  • Gross weight:approx. 22 kg

  • Shipping:DHL / FedEx / UPS air freight；Sea freight available for bulk orders

  • Customizable labeling and export packaging for drop-shipping

FAQ

Q1:Can the speed ramp be customized for multiple steps?
Yes. Up to 20-step profiles are customizable per recipe.

Q2:Does it fit 100 mm round or square substrates?
Yes. We offer customizable chucks for square, rectangular, and irregular substrates.

Q3:What is the lead time for a custom bowl material?
Standard units ship in 7 days. Customizable bowls (e.g., PTFE) require 3–4 weeks.
